SalusSTS®: Molecular insights at subcellular resolution
Explore Salus’ leading high-resolution spatial transcriptomics solutions(STS) .SalusSTS® is a powerful genomics research tool that contains ultra-high density chips, a gene sequencer, a tissue biochemistry workstation and a data analysis toolkit.
By leveraging Salus proprietary high-throughput sequencing and super-resolution fluorescence imaging technologies,SalusSTS®enables more effective research at a subcellular resolution analysis on tissue cell functions, intercellular microenvironment interactions, and disease pathology, etc.

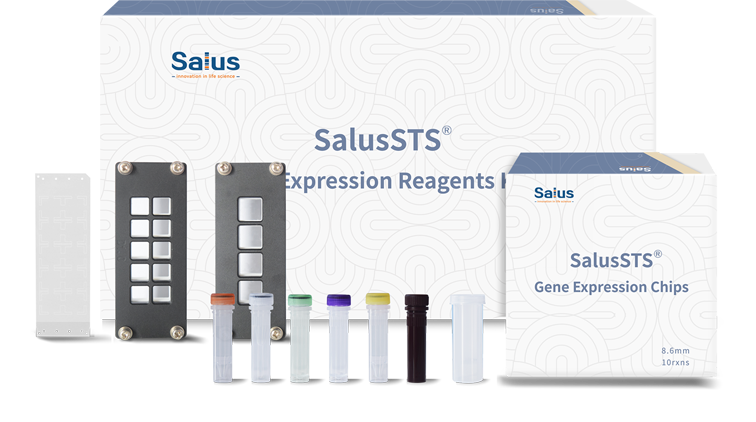

Explore SalusSTS®

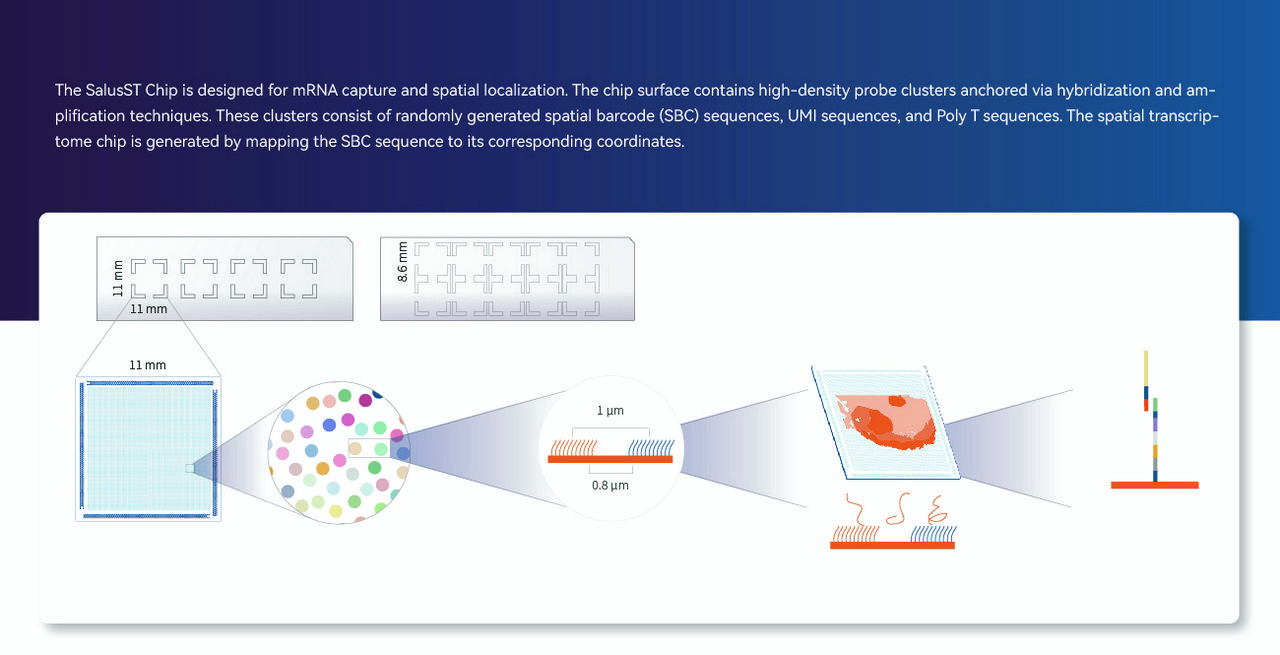

SalusSTS® Technologies
Specifications
| Parameters | SalusSTS®Chips |
|---|---|
|
Size |
8.6 mm × 8.6 mm × 10；11 mm × 11 mm × 4 |
|
Diameter of the spot |
0.8 μm |
|
Center to center (resolution) |
~ 1.0 μm |
|
Number of spots / 100 X 100 μm² |
5000 |
|
Number of probes / μmy |
~ 55000 |
|

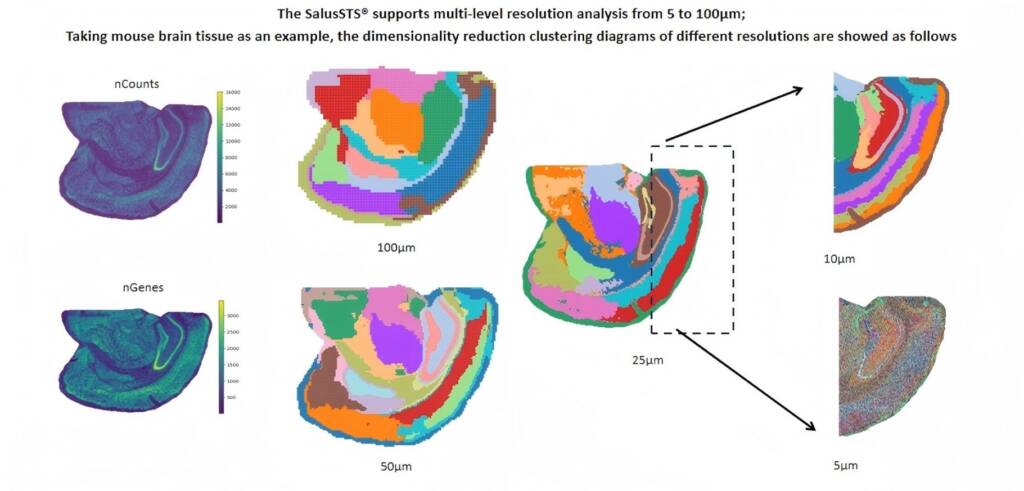

Bin analysis |
5 μm~100 μm |
|
Capture Method |
Non-targeted and targeted capture |
|
Species |
Human, animals and plants |
|
Sample type |
Fresh frozen tissue (FF) |
Key Features
Subcellular Resolution
A resolution of up to 1 μm, supporting precise spatial localization at the subcellular level.
Flexible Capture Area
Captures 1-10 samples either individually or in batches. The tissue and chip are firmly bonded through covalent bonds, ensuring high probe stability and minimal batch-to-batch variation.
High Capture Efficiency
Ultra-high-density probes (180,000 ± 3,000/μm²), offering superior capture efficiency.
High Throughput
Captures a wide range of transcript data from the tissue section, facilitating the detection of novel and low-abundance transcripts.
Large Tissue Research
Supports chip sizes of 8.6 × 8.6 mm² and 11 × 11 mm², with customizable capture areas for larger tissues.
Customizable Probes
Supports both targeted and non-targeted capture, and is applicable to various species and tissue types.

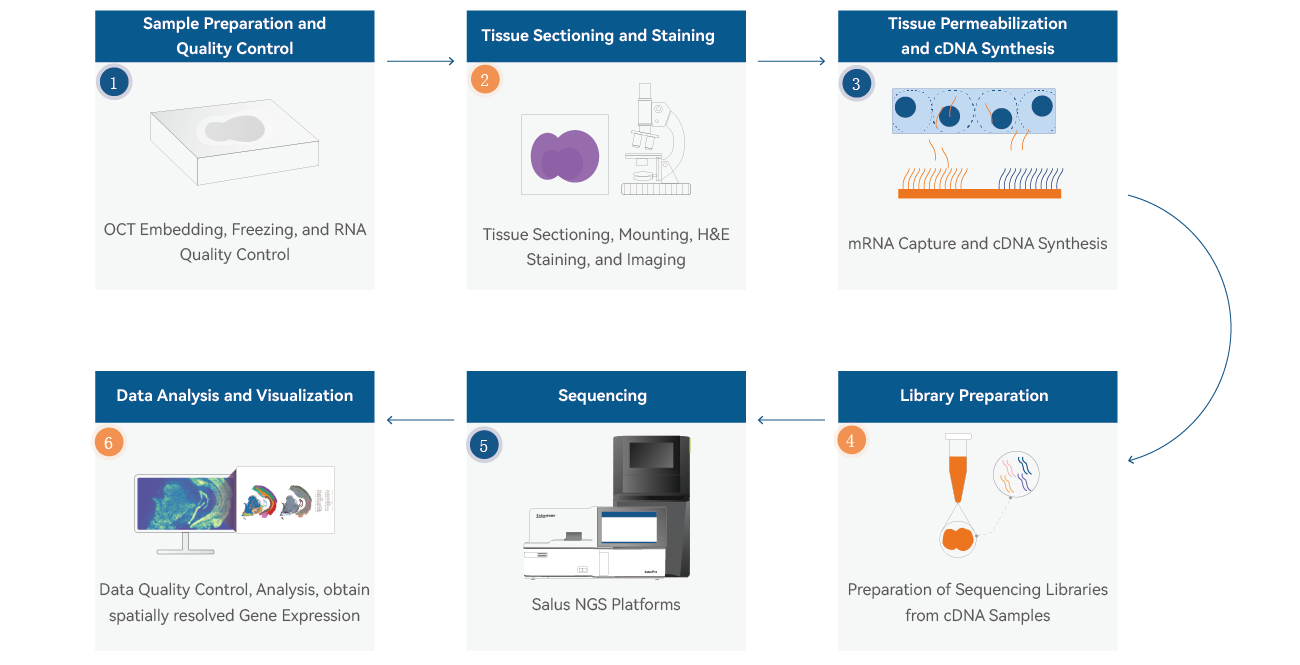

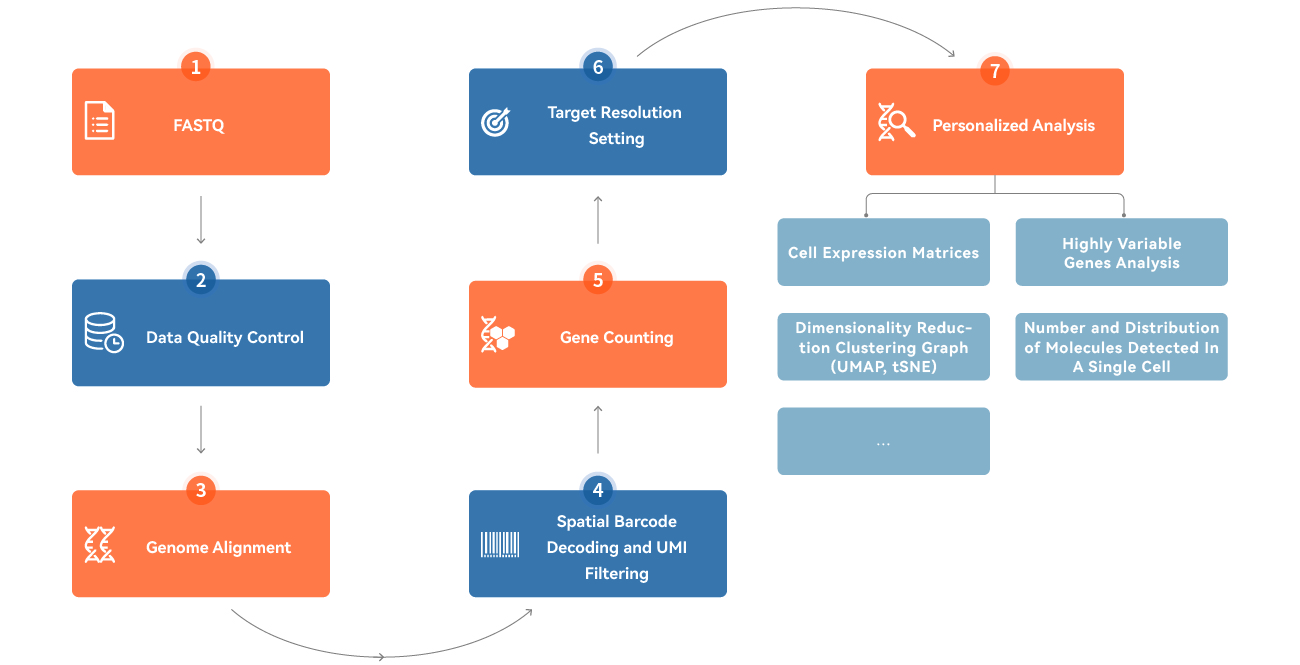

SalusSTS® Workflow

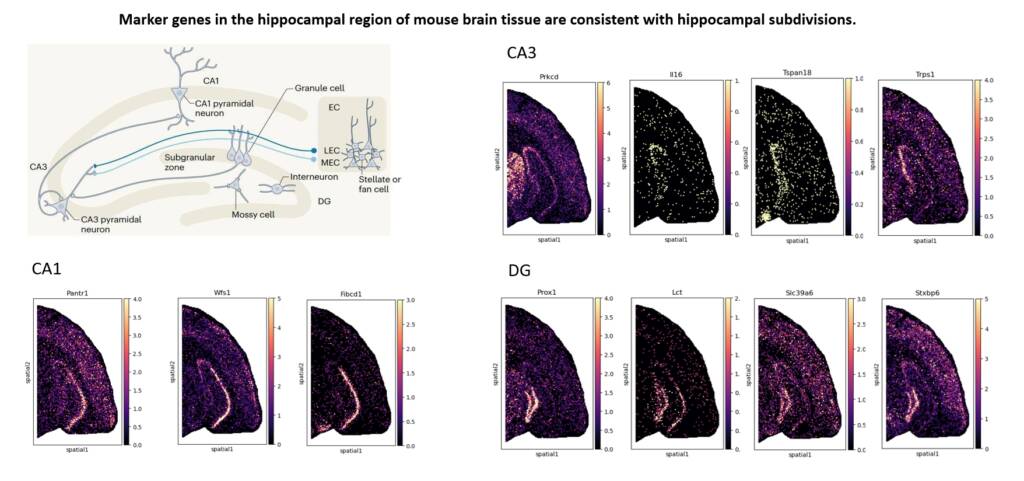

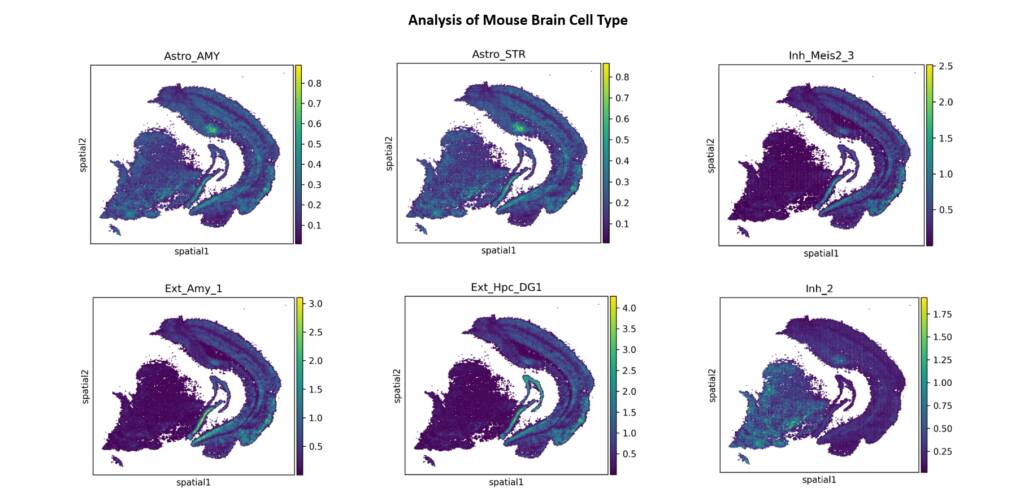

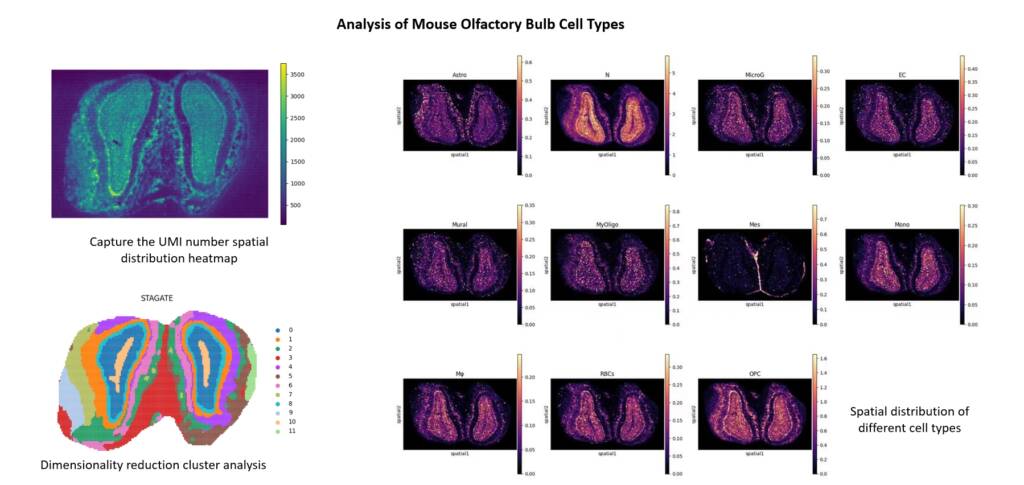

Data Demostrations
Applications
SalusSTS® Workflow
Data Demostrations
Applications
